Part number: 72-02-224R

• Availability:
• Price:
• Description:

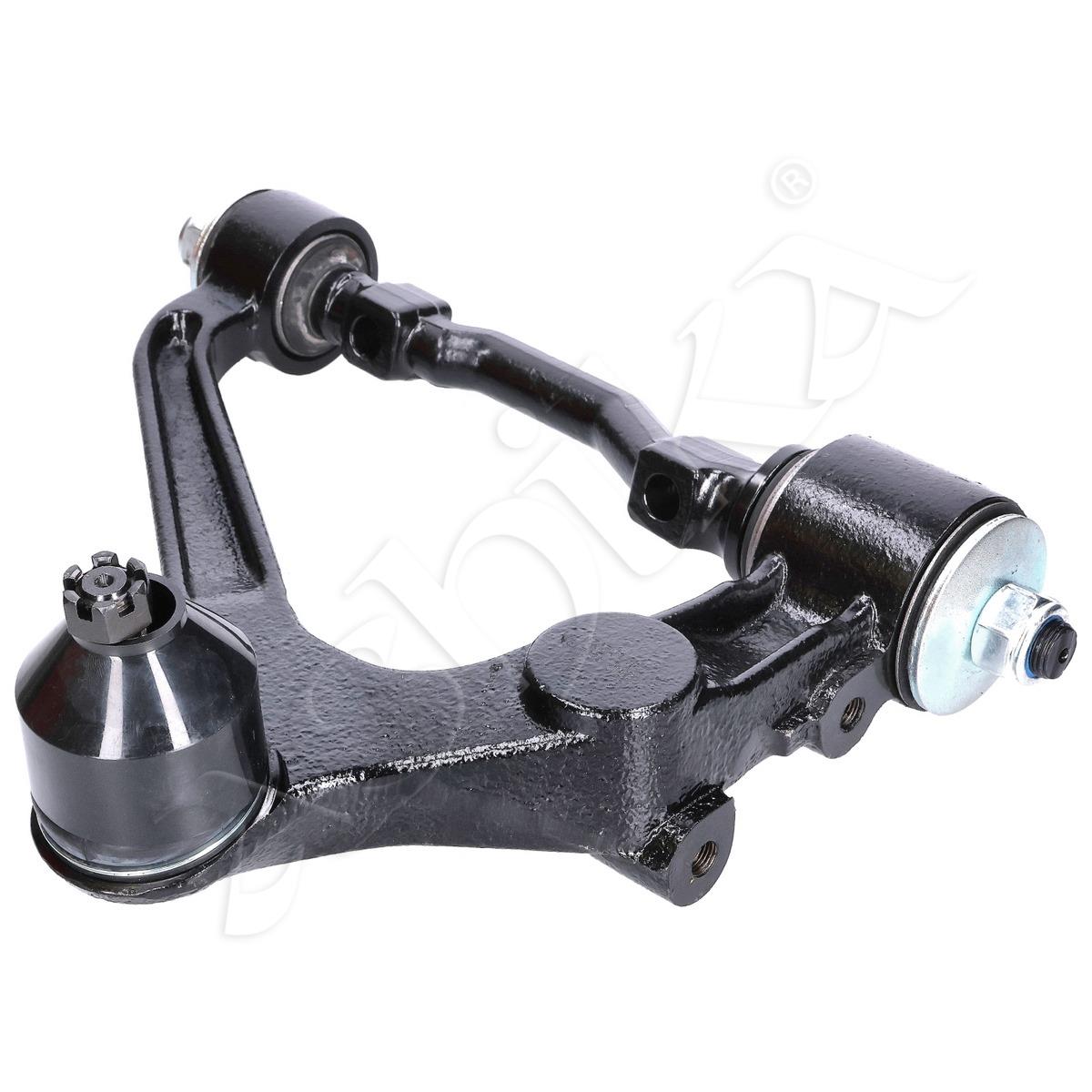

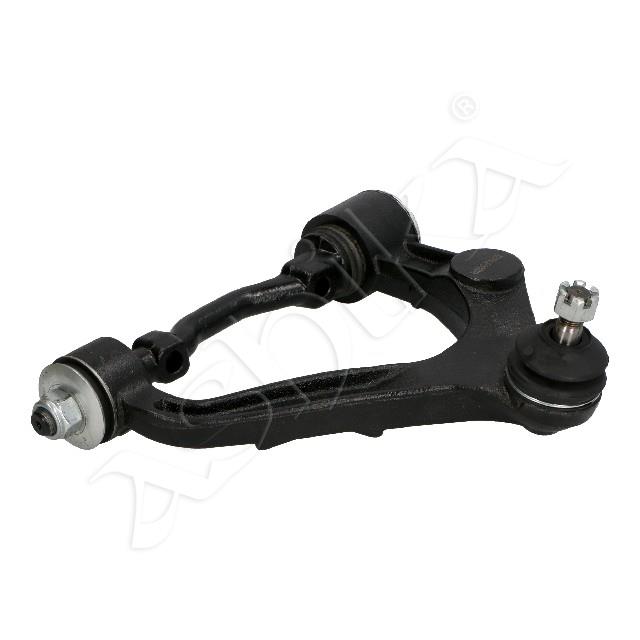

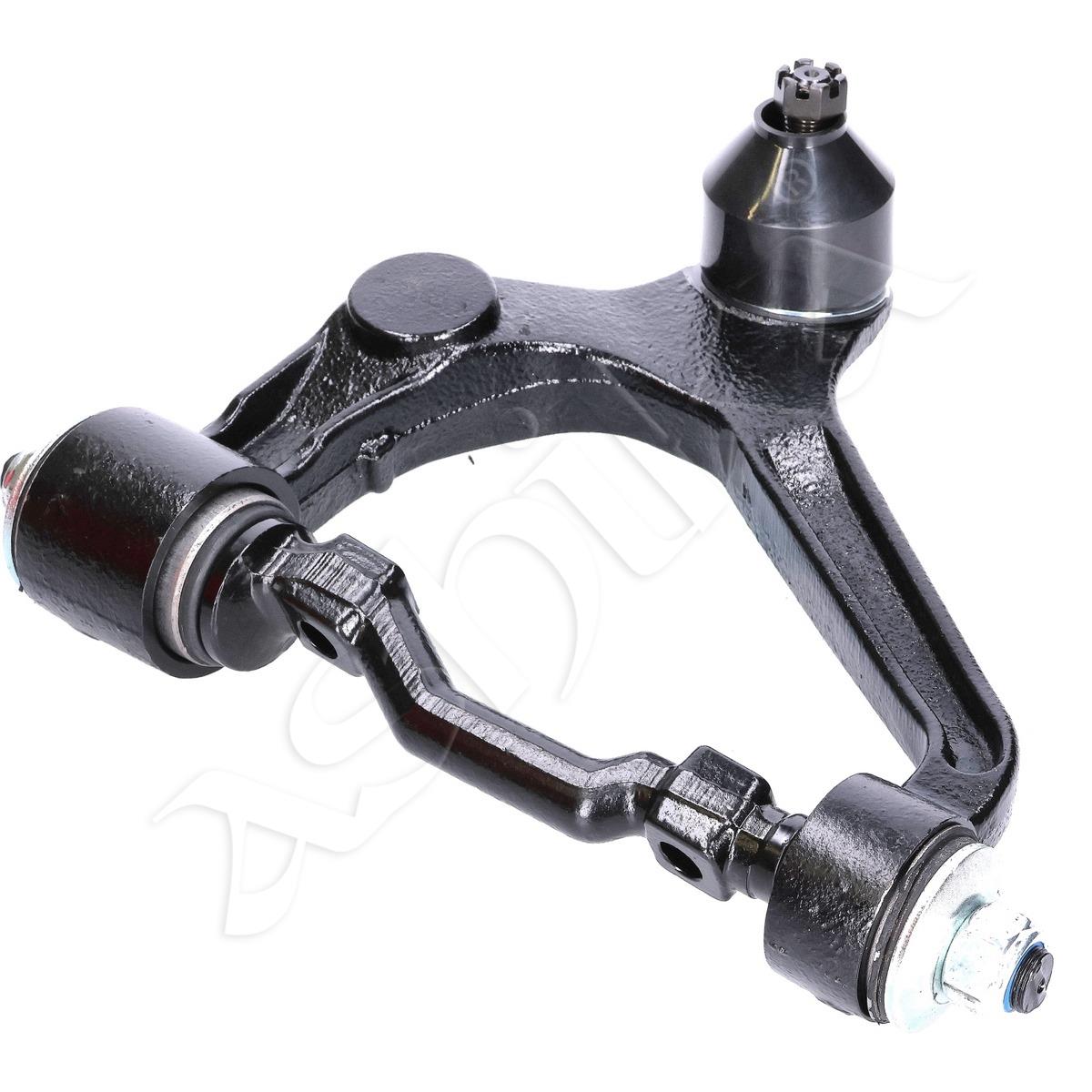

  Control/Trailing Arm, wheel suspension
• Replaced:
  72-02-225
• Fitting Position
  Right Front
• Fitting Position
  Upper
• Overall Height [mm]
  109
• Fitted Diameter [mm]
  17
• External Thread [mm]
  16 X 1,5
• Barcode:
  8033001851038
• WARRANTY INFO:
  2 YEARS

Previous Next

OEM Codes

• 4806629085 (TOYOTA)
• 4806629075 (TOYOTA)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
TOYOTA HIACE / COMMUTER IV (TRH2_, KDH2_) 2.5 D-4D	75	2494	4	09-2006/ -	2KD-FTV	Diesel
TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 4WD	88	2438	4	08-1989/08-1995	2RZ-E	Benzina
TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 D	57	2446	4	09-1989/08-1995	2L	Diesel
TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 D 4WD	55	2446	4	08-1989/07-1999	2L	Diesel
TOYOTA HIACE III Wagon (LH1_, RZH1_) 2.4 4WD	88	2438	4	08-1989/07-1995	2RZ-E	Benzina
TOYOTA HIACE III Wagon (LH1_, RZH1_) 2.4 D 4WD	55	2446	4	08-1987/08-1995	2L	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.4 (RCH12_, RCH22_)	85	2438	4	08-1995/04-1998	2RZ-E	Benzina
TOYOTA HIACE IV Autobus (LH1_) 2.4 4WD (RCH18_)	85	2438	4	08-1995/04-1998	2RZ-E	Benzina
TOYOTA HIACE IV Autobus (LH1_) 2.4 D	55	2446	4	08-1995/08-2001	2L	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.4 D	58	2446	4	08-1995/08-2001	2L	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.4 TD (LXH12_, LXH22_)	66	2446	4	08-1995/08-2001	2L-T	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.4 TD 4WD (H18/28)	66	2446	4	08-1995/08-2001	2L-T	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	86	2494	4	08-2006/12-2012	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	70	2494	4	09-2006/12-2012	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	65	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	75	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D 4WD	75	2494	4	11-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.7	106	2694	4	07-1998/12-2006	3RZ-FE	Benzina
TOYOTA HIACE IV Autobus (LH1_) 2.7 (RCH13_, RCH23_)	105	2694	4	04-1998/11-2001	3RZ-FE	Benzina
TOYOTA HIACE IV Autobus (LH1_) 2.7 4WD (RCH19_)	105	2694	4	04-1998/08-2006	3RZ-FE	Benzina
TOYOTA HIACE IV Autobus (LH1_) 2.7 4WD	106	2694	4	07-1998/06-2005	3RZ-FE	Benzina
TOYOTA HIACE IV Autobus (LH1_) 3.0 D	65	2986	4	08-1998/ -	5L	Diesel
TOYOTA HIACE IV Furgonato (H100) 2.5 D-4D 4x4	65	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 (RCH12_, RCH22_)	85	2438	4	08-1995/11-2003	2RZ-E	Benzina
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 4WD (RCH18_, RCH28_)	85	2438	4	08-1995/04-1998	2RZ-E	Benzina
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 D	55	2446	4	08-1995/08-2001	2L	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 D (LXH12_, LXH22_)	58	2446	4	08-1995/08-2001	2L	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 i (RZH10)	88	2438	4	08-1995/02-2005	2RZ-E	Benzina
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 TD (LXH12_, LXH22_)	66	2446	4	08-1995/08-2001	2L-T	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 TD 4WD (LXH18_, LXH28_)	66	2446	4	08-1995/08-2001	2L-T	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D4d	86	2494	4	09-2006/12-2012	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D-4D	65	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D-4D	75	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D-4D 4WD	75	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D4d 4x4	86	2494	4	09-2006/12-2012	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.7 (RCH13_, RCH23_)	105	2694	4	04-1998/06-2005	3RZ-FE	Benzina
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.7 4WD (RCH19_, RCH29_)	105	2694	4	07-1998/06-2005	3RZ-FE	Benzina
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 3.0 D	65	2986	4	08-1998/ -	5L	Diesel
TOYOTA HIACE IV Furgonato (TRH2_, KDH2_) 2.5 D-4D	75	2494	4	06-2004/ -	2KD-FTV	Diesel
TOYOTA HIACE V Furgonato 2.5 D-4D	70	2494	4	09-2006/ -	2KD-FTV	Diesel
TOYOTA HIACE V Wagon 2.5 D-4D 4x4	86	2494	4	08-2006/ -	2KD-FTV	Diesel
